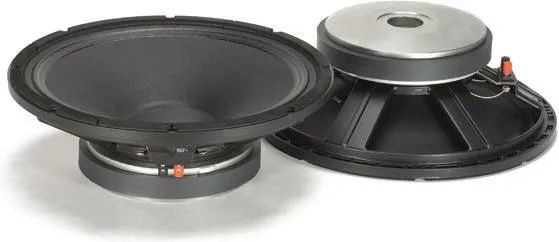

Говорител - 15" - 600W RMS - 99dB - 40Hz-2000Hz

FEATURES
4-inch, fiberglass inside/outside copper voice coil
1200W continuous program power handling
99 dB Sensitivity
40 Hz - 2 kHz Frequency range
M-roll damped surround
Exponential damped cone
Copper ring
GENERAL SPECIFICATIONS
Nominal Diameter:380 / 15 mm/inch
Rated Impedance:8
Program Power:1200 W AES
Power handling capacity:600 W AES
Sensitivity:99 dB
Frequency Range:40 Hz ÷ 2000 Hz
Effective Piston Diameter:325 / 12.8 mm/inch
Max Excursion Before Damage (peak to peak):44 / 1.73 mm/inch
Minimum Impedance:7.9
Voice Coil Diameter:100 / 4 mm/inch
Voice Coil Material:Copper
Voice Coil Winding Depth:16 / 0.6 mm/inch
Number of layers:2
Kind of layer:inside / outside
Top Plate Thickness:9 / 0.35 mm/inch
Cone Material:No pressed pulp
Cone Design:Curved
Surround Material:Polycotton
Surround Design:M - roll
THIELE/SMALL PARAMETERS
Resonance frequency:35 Hz
DC resistance:6.6
Mechanical factor:8.6
Electrical factor:0.25
Total factor:0.24
BL Factor:23 T · m
Effective Moving Mass:91 g
Equivalent Cas air load:227 liters
Effettive piston area:0.083 m2
Max. linear excursion (mathematical):5.8 mm
Voice - coil inductance @ 1kHz:1.7 mH
Half-space efficiency:3.75%
MOUNTING INFORMATION
Overall Diameter:387 / 15.2 mm/inch
Bolt Circle Diameter:371 / 14.6 mm/inch
Bolt Hole Diameter:6.5 / 0.3 mm/inch
Front Mount Baffle Cut-out:358 / 14.1 mm/inch
Rear Mount Baffle Cut-out:362 / 14.2 mm/inch
Depth:138 / 5.4 mm/inch
Volume occupied by the driver:3.8 / 0.13 liters/ft³
Net Weight:11.3 / 24.9 kg/lbs
SHIPPING INFORMATION
Shipping weight:11.8 / 26.0 kg/lbs
