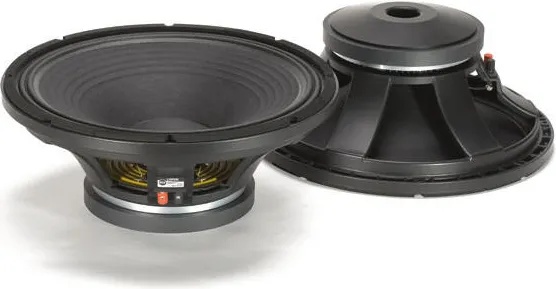

Говорител - 15" - 350W RMS - 100dB - 40Hz-3000Hz

FEATURES
3-inch, edgewound aluminum voice coil
700W continuous program power handling
100 dB Sensitivity
40 Hz – 3 kHz Frequency range
Spider dampening treatment
M-roll surround and exponential cone geometry
GENERAL SPECIFICATIONS
Nominal Diameter:380 / 15 mm/inch
Rated Impedance:8
Program Power:700 W AES
Power handling capacity:350 W AES
Sensitivity:100 dB
Frequency Range:40 Hz ÷ 3000 Hz
Effective Piston Diameter:330 / 13 mm/inch
Max Excursion Before Damage (peak to peak):36 / 1.4 mm/inch
Minimum Impedance:5.9
Voice Coil Diameter:76 / 3 mm/inch
Voice Coil Material:Aluminum
Voice Coil Winding Depth:18 / 0.7 mm/inch
Number of layers:1
Kind of layer:outside
Top Plate Thickness:10 / 0.4 mm/inch
Cone Material:No pressed pulp
Cone Design:Curved
Surround Material:Polycotton
Surround Design:M - roll
THIELE/SMALL PARAMETERS
Resonance frequency:45 Hz
DC resistance:5.1
Mechanical factor:7.5
Electrical factor:0.51
Total factor:0.48
BL Factor:15.3 T · m
Effective Moving Mass:83 g
Equivalent Cas air load:160 liters
Effettive piston area:0.085 m2
Max. linear excursion (mathematical):6.5 mm
Voice - coil inductance @ 1kHz:1.45 mH
Half-space efficiency:2.76%
MOUNTING INFORMATION
Overall Diameter:387 / 15.2 mm/inch
Bolt Circle Diameter:371 / 14.6 mm/inch
Bolt Hole Diameter:6.5 / 0.3 mm/inch
Front Mount Baffle Cut-out:352 / 13.9 mm/inch
Rear Mount Baffle Cut-out:360 / 14.1 mm/inch
Depth:163 / 6.4 mm/inch
Volume occupied by the driver:3.8 / 0.13 liters/ft³
Net Weight:9.5 / 20.9 kg/lbs
SHIPPING INFORMATION
Shipping weight:10 / 22.0 kg/lbs
