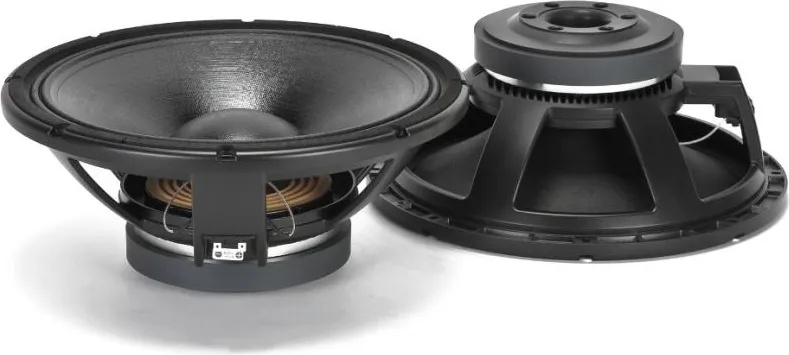

Говорител - 15" - 700W RMS - 99dB - 40Hz-2500Hz

FEATURES
3.5-inch, fiberglass inside/outside copper voice coil
1400W continuous program power handling
99 dB Sensitivity
40 Hz - 2.5 kHz Frequency range
Dual Forced Hyperventing System
Dual spider design with silicon based dampening control
M-roll surround and corrugated straight cone geometry
GENERAL SPECIFICATIONS
Nominal Diameter:380 / 15 mm/inch
Rated Impedance:8
Program Power:1400 W AES
Power handling capacity:700 W AES
Sensitivity:99 dB
Frequency Range:40 Hz ÷ 2500 Hz
Effective Piston Diameter:330/13 mm/inch
Max Excursion Before Damage (peak to peak):40 / 1.57 mm/inch
Minimum Impedance:6.5
Voice Coil Diameter:87 / 3.4 mm/inch
Voice Coil Material:Copper
Voice Coil Winding Depth:19 / 0.74 mm/inch
Number of layers:2
Kind of layer:inside / outside
Top Plate Thickness:10 / 0.39 mm/inch
Cone Material:No pressed pulp
Cone Design:Straight
Surround Material:Polycotton
Surround Design:M-roll
THIELE/SMALL PARAMETERS
Resonance frequency:46 Hz
DC resistance:5.4
Mechanical factor:6.7
Electrical factor:0.33
Total factor:0.31
BL Factor:22.8 T · m
Effective Moving Mass:106 g
Equivalent Cas air load:114 liters
Effettive piston area:0.086 m2
Max. linear excursion (mathematical):7.0 mm
Voice - coil inductance @ 1kHz:1,5 mH
Half-space efficiency:3.20%
MOUNTING INFORMATION
Overall Diameter:393 / 15.5 mm/inch
Bolt Circle Diameter:371-376 / 14.6-14.8 mm/inch
Bolt Hole Diameter:6.5 / 0.3 mm/inch
Front Mount Baffle Cut-out:354 / 13.9 mm/inch
Rear Mount Baffle Cut-out:354 / 13.9 mm/inch
Depth:151 / 5.94 mm/inch
Volume occupied by the driver:4.5 / 0.153 liters/ft³
Net Weight:8.2 / 18.04 kg/lbs
SHIPPING INFORMATION
Shipping weight:9 / 19.8 kg/lbs
