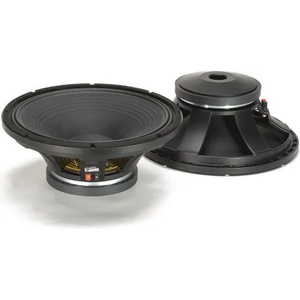

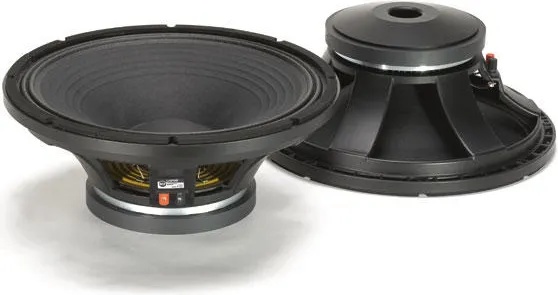

Говорител - 15" - 500W RMS - 98dB - 40Hz-2000Hz

FEATURES
3-inch, fiberglass inside/outside copper voice coil
1000W continuous program power handling
98 dB Sensitivity
40 Hz - 2 kHz Frequency range
Dual spider design with silicon based dampening control
M-roll surround and exponential cone geometry
GENERAL SPECIFICATIONS
Nominal Diameter:380 / 15 mm/inch
Rated Impedance:8
Program Power:1000 W AES
Power handling capacity:500 W AES
Sensitivity:98 dB
Frequency Range:40 Hz ÷ 2000 Hz
Effective Piston Diameter:330 / 13 mm/inch
Max Excursion Before Damage (peak to peak):36 / 1.4 mm/inch
Minimum Impedance:6.8
Voice Coil Diameter:76 / 3 mm/inch
Voice Coil Material:Copper
Voice Coil Winding Depth:18 / 0.7 mm/inch
Number of layers:2
Kind of layer:inside / outside
Top Plate Thickness:10 / 0.4 mm/inch
Cone Material:No pressed pulp
Cone Design:Curved
Surround Material:Polycotton
Surround Design:M - roll
THIELE/SMALL PARAMETERS
Resonance frequency:50 Hz
DC resistance:5.6
Mechanical factor:9.7
Electrical factor:0.41
Total factor:0.39
BL Factor:21.4 T · m
Effective Moving Mass:106 g
Equivalent Cas air load:100 liters
Effettive piston area:0.085 m2
Max. linear excursion (mathematical):6.5 mm
Voice - coil inductance @ 1kHz:1.5 mH
Half-space efficiency:2.94%
MOUNTING INFORMATION
Overall Diameter:387 / 15.2 mm/inch
Bolt Circle Diameter:371 / 14.6 mm/inch
Bolt Hole Diameter:6.5 / 0.3 mm/inch
Front Mount Baffle Cut-out:352 / 13.9 mm/inch
Rear Mount Baffle Cut-out:360 / 14.1 mm/inch
Depth:163 / 6.4 mm/inch
Volume occupied by the driver:3.8 / 0.13 liters/ft³
Net Weight:9.5 / 20.9 kg/lbs
SHIPPING INFORMATION
Shipping weight:10 / 22.0 kg/lbs
