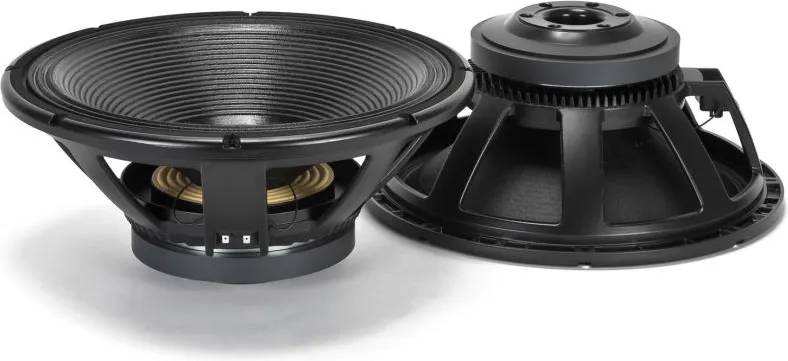

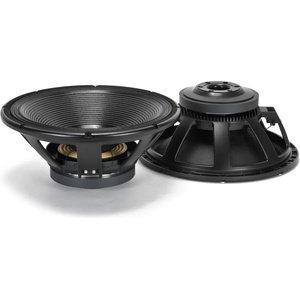

Говорител - 15" - 1500W RMS - 96.5dB - 30Hz-1000Hz

FEATURES
4-inch, fiberglass inside/outside copper voice coil
3000W continuous program power handling
96.5 dB Sensitivity
30 Hz – 1.5 kHz Frequency range
Dual Forced Hyperventing System
Dual spider design with silicon based dampening control
Triple-roll surround and corrugated straight cone geometry
GENERAL SPECIFICATIONS
Nominal Diameter:380 / 15 mm/inch
Rated Impedance:8
Program Power:3000 W AES
Power handling capacity:1500 W AES
Sensitivity:96.5 dB
Frequency Range:30 Hz ÷ 1500 Hz
Effective Piston Diameter:340/13.4 mm/inch
Max Excursion Before Damage (peak to peak):50 / 1.97 mm/inch
Minimum Impedance:6.3
Voice Coil Diameter:100 / 4 mm/inch
Voice Coil Material:Copper
Voice Coil Winding Depth:30 / 1.18 mm/inch
Number of layers:2
Kind of layer:inside / outside
Top Plate Thickness:15 / 0.6 mm/inch
Cone Material:No pressed pulp
Cone Design:Straight
Surround Material:Polycotton
Surround Design:Triple roll
THIELE/SMALL PARAMETERS
Resonance frequency:34 Hz
DC resistance:5.5
Mechanical factor:7.6
Electrical factor:0.30
Total factor:0.29
BL Factor:26.5 T · m
Effective Moving Mass:170 g
Equivalent Cas air load:146 liters
Effettive piston area:0.091 m2
Max. linear excursion (mathematical):11.5 mm
Voice - coil inductance @ 1kHz:2,5 mH
Half-space efficiency:1.90%
MOUNTING INFORMATION
Overall Diameter:393 / 15.5 mm/inch
Bolt Circle Diameter:371-376 / 14.6-14.8 mm/inch
Bolt Hole Diameter:6.5 / 0.3 mm/inch
Front Mount Baffle Cut-out:354 / 13.9 mm/inch
Rear Mount Baffle Cut-out:354 / 13.9 mm/inch
Depth:145 / 5.7 mm/inch
Volume occupied by the driver:4.3 / 0.15 liters/ft³
Net Weight:12.6 / 27.7 kg/lbs
SHIPPING INFORMATION
Shipping weight:13.6 / 29.9 kg/lbs
